PARAMAGNETIC LANTHANIDE(III) IONS AS NMR PROBES FOR BIOMOLECULAR STRUCTURE AND FUNCTION

LI-JUNE MING
Department of Chemistry
and Institute for Biomolecular Science
University of South Florida
Tampa, Florida 33620-5250

[Abstract]

1.  Introduction

    Paramagnetic transition metal ions have been used successfully as spectroscopic probes for the study of metal binding sites in many metalloproteins [1,2].  When a paramagnetic metal ion with fast electronic relaxation rates is used as a probe, ¹H NMR spectroscopy becomes a valuable tool for such study via the detection and assignment of isotropically shifted signals outside of the normal 0-13 ppm region attributable to protons close to the metal ion [2].  Information about the coordinated ligands and the interactions with substrates analogues and the medium can thus be obtained.  For example:  A coordinated His can be identified via the detection of the isotropically shifted solvent exchangeable imidazole NH signal and its correlation with a ring CH signal, and a coordinated carboxylate-containing residue can also be identified by showing the isotropically shifted (CgH₂)-CbH₂-CaH spin patterns, which can be differentiated from the spectral features of Cys and Met showing different chemical shifts and relaxation times.  The metal ions Fe^2+/3+, Co²⁺, and Ni²⁺ have been used extensively as probes for structural and functional studies of many metalloenzymes by means of NMR techniques.  Particularly, Co²⁺-substituted derivatives of Zn enzymes can always show high activity, thus can serve as good models for better understanding of the structure and mechanism of the native enzymes [2].  The contributions in this volume by Lawrence Que (on nonheme and non-FeS Fe proteins) and by J. M. Moratal and Antonio Donaire (on Co²⁺- and Ni²⁺-substituted proteins) provide a general view on the use of NMR techniques for the study of the coordinated ligands in several paramagnetic metalloproteins.

    In addition to the widely used paramagnetic transition metal ion NMR probes, paramagnetic lanthanide(III) ions (Ln³⁺) with short electronic relaxation times (~10^–13 s) have long been used as shift reagents to simplify the assignment of complicated ¹H NMR spectra [3] and for the study of biomolecules.[4,5]  However, the use of these Ln³⁺ (as well as other paramagnetic transition metal ions) as NMR probes for the study of the structure and mechanism of proteins has been hampered due to the lack of appropriate techniques for conclusive signal assignment.  The use of 2D NMR techniques for the study of paramagnetic metal sites in metalloproteins has been impeded in the past several years owing to the fast nuclear relaxation rates of the isotropically shifted signals, although these techniques have been extensively used for structural studies of diamagnetic proteins [6].  In the past three years, such techniques have been applied successfully in our [7] and other laboratories [8] for the study of the metal sites in several paramagnetic metalloproteins.

    Dipolar shift is the predominant isotropic shift mechanism in paramagnetic Ln³⁺ complexes, as opposed to the presence of large contribution of contact shift mechanism in paramagnetic transition metal complexes (although dipolar shift is also an important shift mechanism in Fe-heme systems as discussed in several other chapters in this volume, such as the ones by Gerd La Mar and James Satterlee), because the valence f orbitals are highly shielded and cannot participate in direct chemical bonding [3].  The dipolar shift of a nucleus depends on the relative position of the nucleus with respect to the metal as shown below [2,3]:

        (1)

where r is the nucleus-metal distance, q is the geometric angle of the r vector and the Z axis, and W is the angle of the X axis and the projection of the r vector on the XY plane.  The configuration of the metal site is obtainable when the principal components of the magnetic susceptibility tensor (c's) are known, although which are not always available in practice [3].  Moreover, the isotropically shifted signals which are buried in the diamagnetic envelope cannot be easily resolved and assigned; and the signals with similar isotropic shifts and relaxation times may also render signal assignment difficult solely based on eq 1.  Although proton-metal distances can be estimated by the Solomon equation and Curie relaxation [2], the structure of the metal site cannot be uniquely defined unless the spatial and bond correlations of the nuclei with respect to each other can be precisely determined.  One advantage of utilizing paramagnetic Ln³⁺ ions over transition metal ions as probes is that their causing large dipolar shift of nearby nuclei allows the study of the whole metal environment, but not restricted to only the coordinated ligands as in most cases of the latter.

    Proton NOE techniques have been used successfully for the assignment of isotropically shifted resonances in the past several years [8].  The determination of NOE between a pair of nuclei (i and j) in a paramagnetic species can give the internuclear distance (r_ij) as shown in eq 2 [8,9],

where s_ij = – (h/2p)²g⁴t_c/10r_ij⁶ is the cross relaxation with g the gyromagnetic ratio and t_c the rotational correlation time, r_i is the intrinsic relaxation rate of i, and t is saturation duration time.  A NOESY [9,10] experiment can also be described by a slight modification of eq 2 to include r_j [11].  Coherence transfer NMR techniques have also been useful for signal assignment in paramagnetic species when cross signals in COSY (as functions of sin(pJ_abt₁)exp(–t₁/T₂) with J_ab the scalar coupling constant, T₂ the spin-spin relaxation time, and t₁ the evolution time for the second dimension) [10] due to scalarly coupled nuclei could be observed.  These techniques have recently been applied for the study of paramagnetic metalloproteins [7,8] (which are also discussed in several contributions of this volume such as the theory and technique-oriented ones by Bertini and by Luchinat), although the observation of relaxation-based coherence transfer in a COSY experiment becomes possible when Curie relaxation is present (to a less extent for a small S = 1/2 metalloprotein at elevated temperatures) [12].  A precise assignment of the isotropically shifted features, along with the geometric-dependent dipolar shift, can provide detailed structural information about the paramagnetic metal-binding environment in metalloproteins.  In this contribution, the application of 1D and 2D NMR techniques for structural and mechanistic studies of several metallo-biomolecular systems in our laboratory using paramagnetic Ln³⁺ as probes will be summarized and discussed.

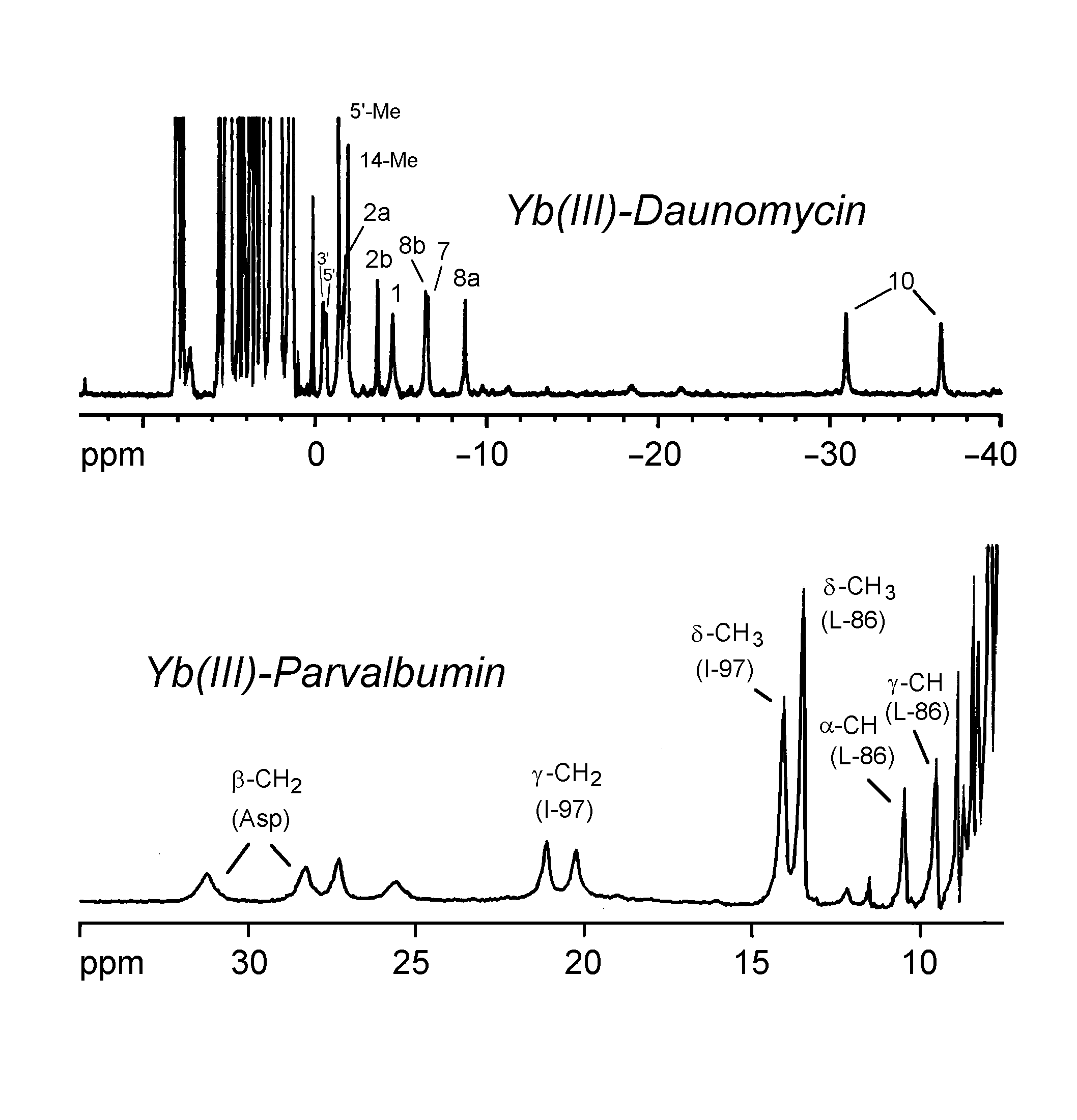

    The spectra below show the use of Yb(III) as an NMR probe in the study of daunomycin and parvalbumin

References
    [1] Williams, R. J. P. (1978) Enzyme action:  Views derived from metalloenzyme studies, Chem. Britain 14, 25.  (b) Hughes, M. N. (1981) The Inorganic Chemistry of Biological Processes; 2nd Ed.; Wiley, New York.
    [2] (a) Bertini, I. and Luchinat, C. (1986) NMR of Paramagnetic Molecules in Biological Systems; Benjamin/Cumming, Menlo Park, CA.  (b) Berliner, L. J. and Reuben, J., eds. (1993) NMR of Paramagnetic Molecules; Plenum, New York.
    [3] (a) Morrill, T. C., Ed. (1986) Lanthanide Shift Reagents in Stereochemical Analysis; VCH, NY.  (b) La Mar, G. N., Horrocks, W. DeW., Jr., and Holm, R. H. eds, (1973) NMR of Paramagnetic Molecules, Chapters 12 & 13; Academic, NY.
    [4] Lenkinski, R. E. (1984) Lanthanide complexes of peptides and proteins, Biol. Magn. Reson. 6, 23-71.
    [5] Lee, L. and Sykes, B. D. (1980) High resolution NMR, Adv. Inorg. Biochem. 2, 183-210.
    [6] Wüthrich, K. (1986) NMR of Proteins and Nucleic Acids; Wiley, NY.
    [7] (a) Holz, R. C., Que, L., Jr., and Ming, L.-J. (1992)  NOESY Studies on the Fe(III)Co(II) Active Site of the Purple Acid Phosphatase Uteroferrin, J. Am. Chem. Soc. 114, 4434-4436.  (b) Bertini, I., Luchinat, C., Ming, L.-J., Piccioli, M., Sola, M., and Valentine, J. S. (1992) Two-dimensional 1H NMR studies of the paramagnetic metalloenzyme copper-nickel superoxide dismutase, Inorg. Chem. 31, 4433-4435.  (c)  Ming, L.-J.,  Lynch, J. B., Holz, R. C., and Que, L., Jr. (1994) One- and two-dimensional ¹H NMR studies of the active Site of iron(II) superoxide dismutase from Escherichia coli, Inorg. Chem. 33, 83-87.  (d) Ming, L.-J. (1993) Two-dimensional ¹H NMR studies of Ca(II)-binding site in proteins using paramagnetic lanthanides(III) as probes and Yb(III)-substituted bovine a-lactalbumin as an example, Magn. Reson. Chem. 31, S104-S109.  (e) Ming, L.-J. (1993) Two-Dimensional ¹H NMR Study of Paramagnetic Lanthanide(III)-Substituted Ca(II) Proteins, J. Inorg. Biochem. 51, 99.
    [8]  For general reviews, see (a) La Mar, G. N. and de Ropp, J. S. (1993) NMR Methodology for Paramagnetic Proteins, In Berliner, L. J.; Reuben, J., Eds.; NMR of Paramagnetic Molecules; Plenum, New York..  (b) Bertini, I., Turano, P., Vila, A. J. (1994) Nuclear Magnetic Resonance of Paramagnetic Metalloproteins, Chem. Rev. 93, 2833-2932.
    [9] (a) Noggle, J. H.and Schirmer, R. E. (1971) The Nuclear Overhauser Effect; Academic, NY.  (b) Neuhaus, D. and Williamson, M. P. (1989) The Nuclear Overhauser Effect in Structural and Conformational Analysis; VCH, NY.
    [10] Ernst, R. R.,  Bodenhausen, G., and Wokaun, A. (1987) Principles of Nuclear Magnetic Resonance in One and Two Dimensions;  Oxford.
    [11] Sette, M., de Ropp, J. S., Hernandez, G., and La Mar, G. N. (1993) Determination of interproton distances from NOESY spectra in the active site of paramagnetic metalloproteins:  Cyanide-inhibited horseradish peroxidase, J. Am. Chem. Soc. 115, 5237-5245.
    [12] Bertini, I, Luchinat, C., and Tarchi, D. (1993) Are true scalar proton-proton connectivities ever measured in COSY spectra of paramagnetic macromolecules? Chem. Phys. Lett. 203, 445.
